Dekra

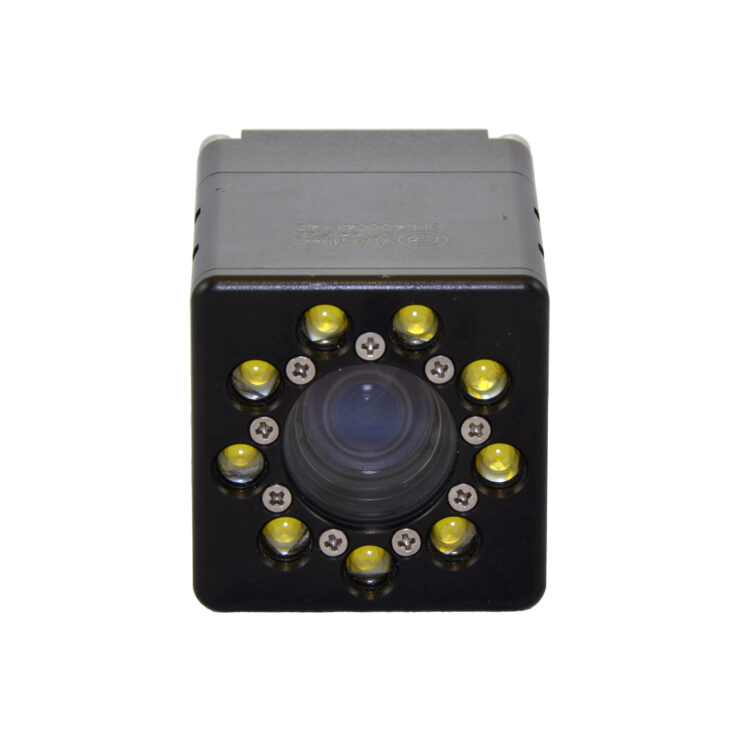

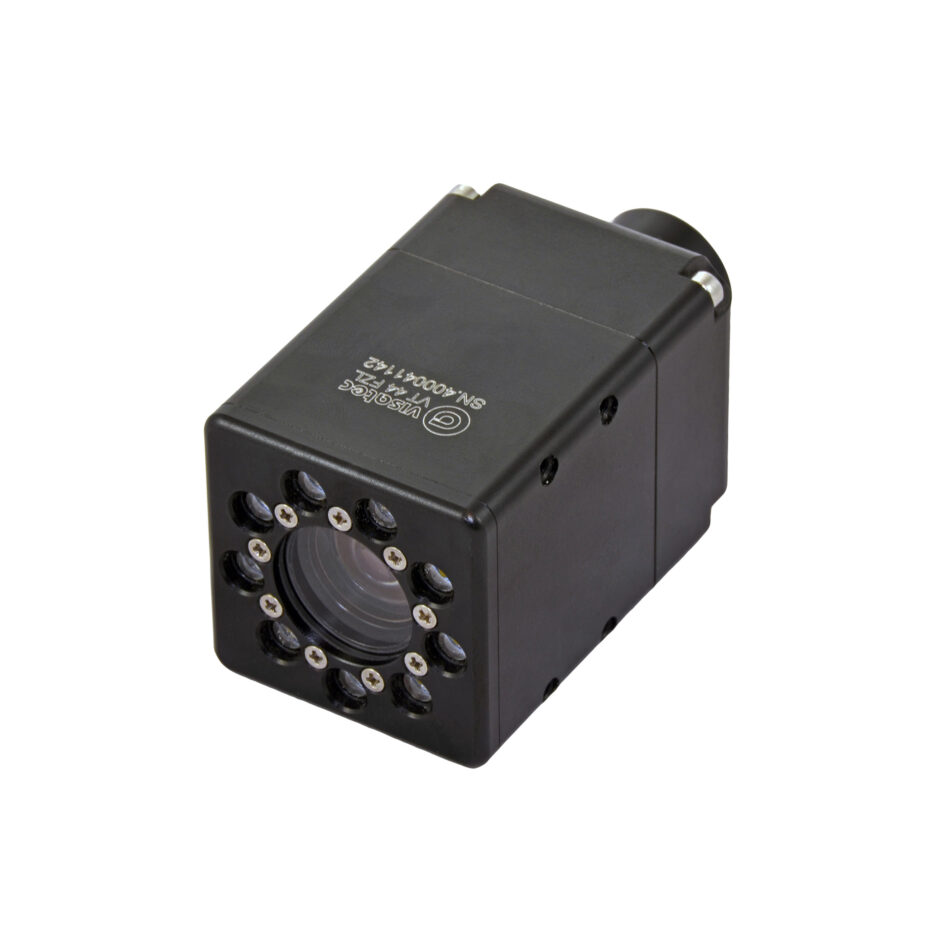

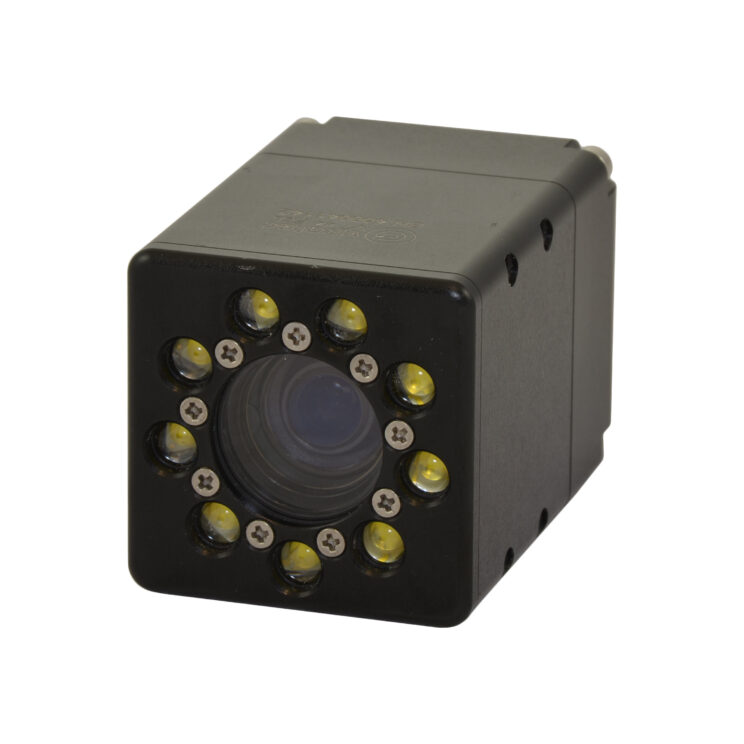

VT44 FZL Inspection Camera

Watertight color camera with 10:1 optical zoom. Equipped with integrated LED lighting and extended camera functions makes it ideal for all inspections in nuclear environments. Its extremely compact design allows inspections in pipes and hard to reach areas.

Applications & Features

  • All underwater inspections and monitoring applications in hard to reach areas
  • Easy handling
  • Nuclear visual inspections – e.g. pressure vessel inspections
  • Industrial applications – e.g. deep well
  • Decommissioning applications – e.g. pipe and tank inspections
  • Robust and compact design
  • Zoom lens 10x optical / 12x digital
  • High-resolution camera for detailed pictures
  • Integrated LED lighting
  • Depth rating: 5 bar/50m

Specifications

  • Housing: Aluminium anodised
  • Dimensions: 44 x 44 x 84 mm
  • Image sensor: 1/4“ EXview HAD IT CCD / 530 lines horizontal
  • Video out: S-Video/composite colour – PAL/NTSC
  • Zoom: 10x optical / 12x digital
  • Angle of view: 46° – 4.6° hor.
  • Focus: Automatic or manual
  • Iris / Brightness: Automatic or manual
  • Pan-Tilt range: n/a
  • Lighting: LED ring 9 x 3W LED
  • Weight: 200 grams
  • Operating temperature: 0 – 50 °C
  • Depth rating: 5 bar/50m
  • Radiation tolerance / resistance: 1500 rad/h (15Gy/h) / Total 25000 rad (250 Gy)
