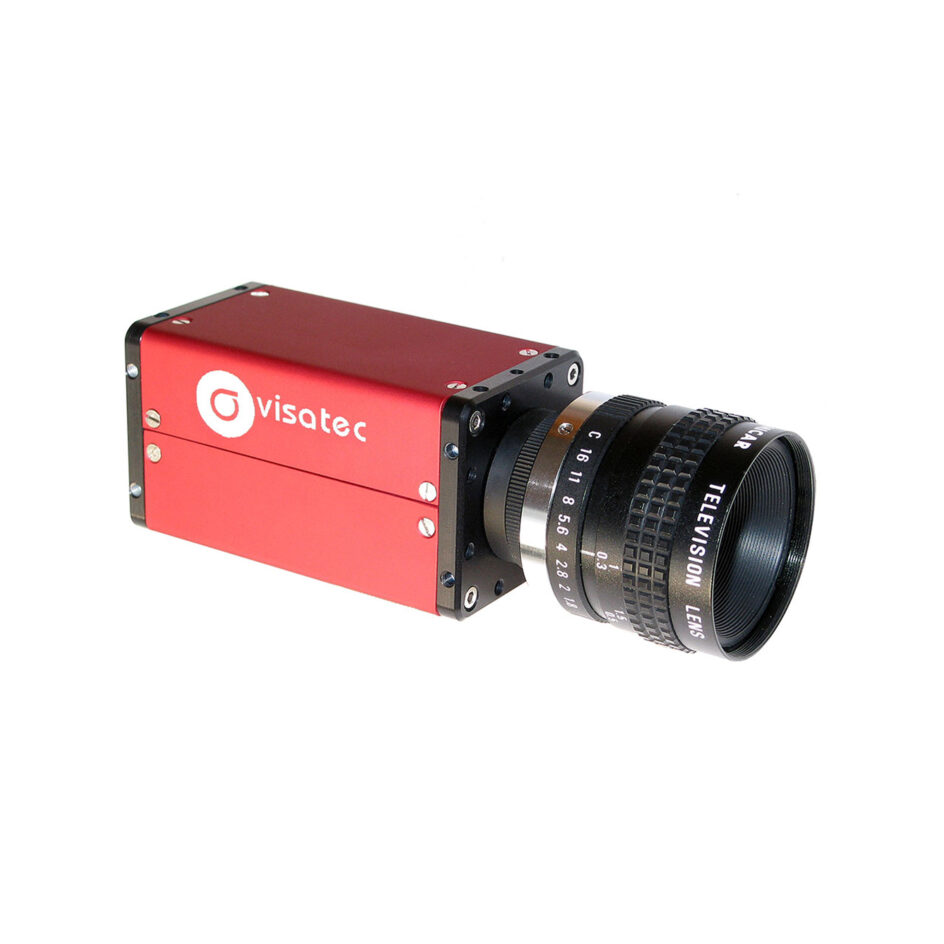

VT RC2 Inspection Camera
VT RC2 is a compact, radiation resistant black & white video camera in an aluminium housing. Its CMOS sensor is extremely robust and makes the camera ideals for inspection and monitoring applications in harsh environments.
Applications & Features
- Inspections and monitoring in radioactive environments with alpha, beta and gamma radiation
- Visual inspections in nuclear environments
- Medical and industrial X-ray applications
- Research applications
- Robust black and white CMOS sensor
- Underwater applications (additional housing required)
- Flexible choice of various lenses, also radiation resistant
Specifications
- Housing: Aluminium
- Dimensions: 80 x 43.5 x 43.5 mm (LxWxH) 80 x 43.5 x 43.5 mm without lens or flange socket
- Weight: 0,2 kg
- Resolution: 586 x 440 pixels / 440 TVL horizontal
- Video out: B/W Composite
- Image sensor: CMOS APS / ROI for 2/3“ with AGC
- Lens: various lenses available / C-mount with 10 mm adapter
- Sensitivity: 0.4 lux S/N = 12 dB
- Zoom: manually adjustable zoom
- Angle of view: depends on lens
- Focus: manual
- Pan-Tilt range: n/a
- Lighting: n/a, can be adapted
- Operating temperature: 0 – 50 °C
- Depth rating: dependant on housing
- Radiation tolerance: 70 kGy max.cumulative / 2 K Gy / h / 500 Gy / h / 100 Gy / h EDL for inspection work
