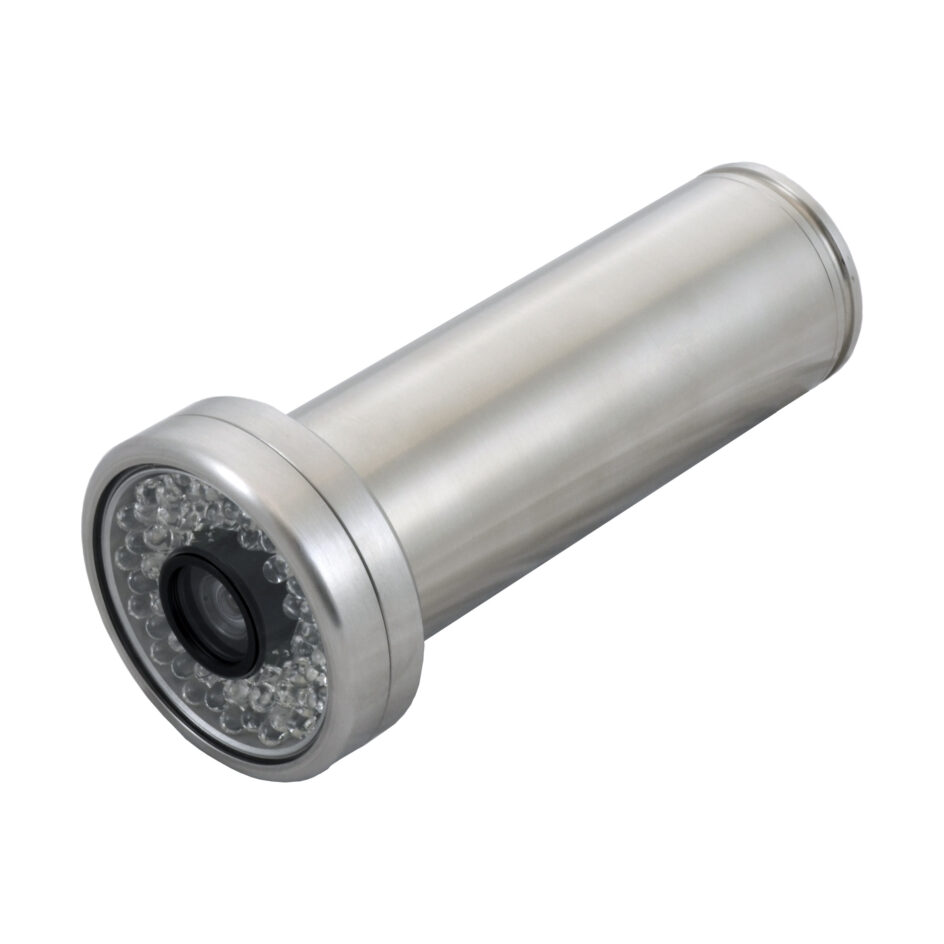

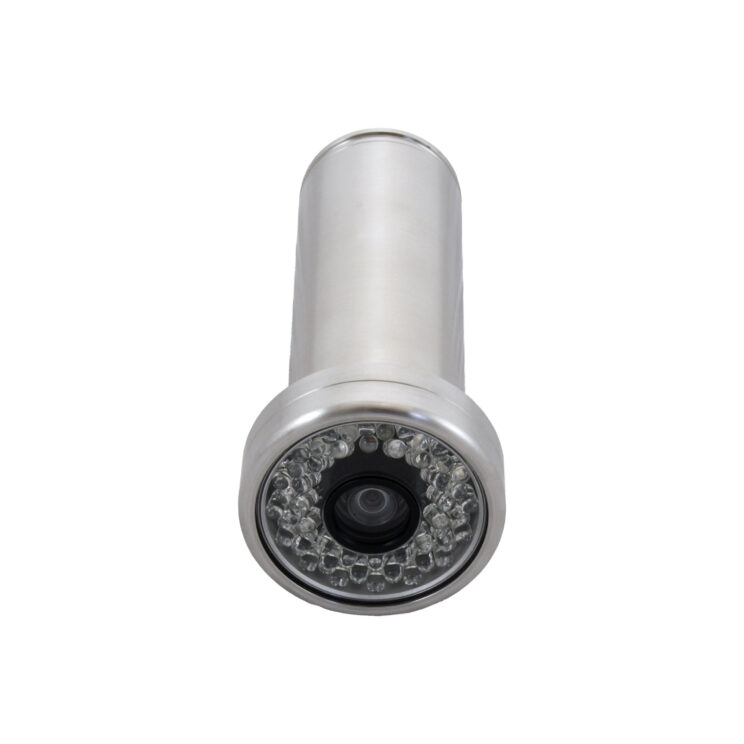

VT HTC-II Inspection Camera
VT HTC-II is a passively cooled, resolvant resistant inspection camera for rough environments up to 105° celsius (221° F). It’s perfectly suited for pipe and sewer renovation when it comes to monitoring tasks if lining is applied successfully.
Applications & Features
- Sewer inspections and renovations
- Inspections of high-temperature environments
- Certified up to +90°C
- Passively-cooled
- Integrated LED lighting
- Integrated focus
- Watertight up to 20 metres
Specifications
- Material case: Stainless steel
- Dimensions: 160 x 50 mm (L x D)
- Weight: approx. 1.5 kg
- Operating temp: -10 up to +105 °C
- Depth rating: 20 bar/200m optional
- CCIR signal: 1 VSS 75 Ohm / 625 lines / 50 Hz
- Sensor: 1/2“ CCD / 437 664 Pixel black/white
- Focus: integrated
- Aperture/Shutter: automatic / 7 manually controllable shutter times
- AGC: Automatic gain control (can be switched off)
- Sensitivity: 0.25 lux
- Lens: 1:4 / F = 5mm
- Lighting: integrated LED lighting
- Power supply: 15 Volts DC / 300 mA
